Power Lite Plus Series
PLPA-L1-10K2
Low-Voltage Home Battery
Certification
IEC 62619 | IEC 62040 | UN 38.3
Designed For
Europe | Australia
10.24 kWh
Rated Energy
6.14 / 6.14 kW
Charge / Discharge Power
IP65
Protection Rating
6,000 Cycles
Designed Cycle Life
Store Solar.
Power Your Home.
Power Your Home.
PLPA-L1-10K2 is a slim 10.24 kWh wall-mounted battery designed for residential solar storage and backup systems, with parallel expansion as energy needs grow.

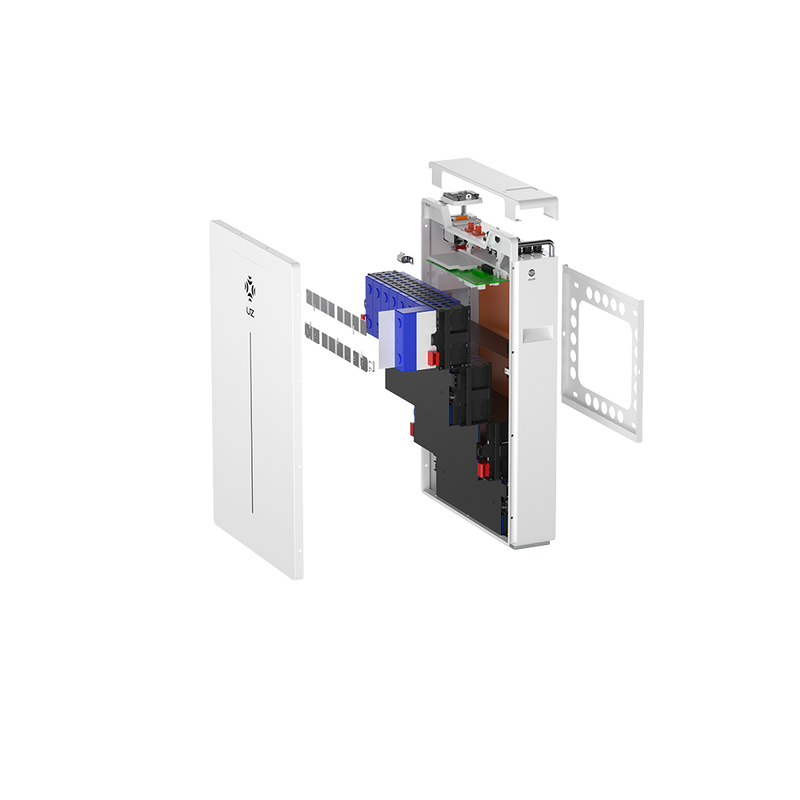

Protection,
Built In.
Built In.
The enclosure, battery modules, electrical components and control hardware work together to support stable, reliable operation.
Recharge with Solar
Power Through Outages
Keep Your Home Running
24/7 Energy.
More Value from Every kWh.
More Value from Every kWh.
Store solar for home backup and EV charging, and export surplus energy where local programs allow.
10.24 kWh
Rated energy per unit
IP65
Dust & Rain Protection
−15°C
Charging Support

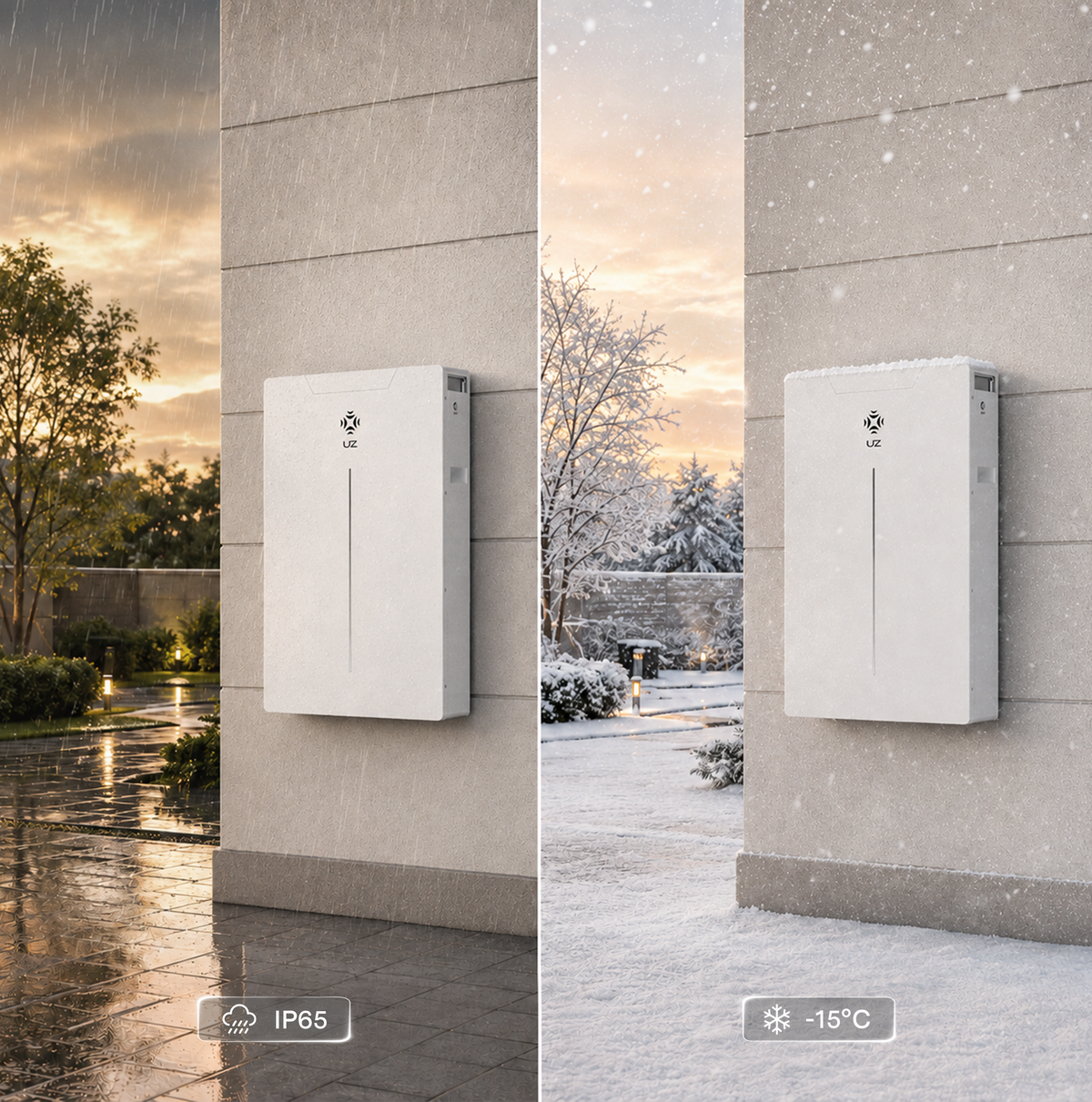

Designed to keep working in cold, rainy and snowy conditions within its specified operating range.
-15°C to 55°C operating range
Optional heating films for low-temperature configurations
More Accurate Energy.
Smarter Decisions.
Smarter Decisions.
EdgeBox turns battery data into clearer energy, safety and dispatch insight.
More Energy for Life at Home.
Solar energy, ready when your family needs it.
SPEC
Rated Capacity
200 Ah
Rated Energy
10.24 kWh
Rated Voltage
51.2 V
Working Voltage Range
44.8–58.4 V
Rated Charge / Discharge Power
6.14 kW / 6.14 kW
Peak Discharge
160 A / 8.19 kW for 1 minute
Expansion
Up to 16 units / 163.84 kWh
Dimensions
550 × 165 × 867 mm (±5)
Weight
Approx. 94 kg
Operating Temperature
Charge: -5°C to 55°C / Discharge: -15°C to 55°C
IP Rating
IP65
Communication
CAN / RS485 / Dry Contact / Optional Wi-Fi
Designed Cycle Life
6,000 cycles · 0.5C, 80% DoD, 80% SOH at 25°C
Warranty
10 years
Certifications
IEC 62619 / IEC 62040 / IEC 61000 / UN 38.3
Product Downloads
Technical documents for this product.
