SSL-8K-24K-P3EU
Three-Phase Low-Voltage Hybrid Inverter
Designed For
Europe
8–24 kW
Rated AC Output
16–48 kW
Maximum PV Array
Up to 415 A
Charge / Discharge Current
<20 ms
Backup Switch Time
Power More. Manage Smarter.
Connect solar, battery storage, and the grid through a flexible energy hub designed for larger residential applications.
Backup Power
Stay powered during outages.
Store Energy
Save energy for later use.
Lower Energy Costs
Use stored energy when electricity prices are higher.
Built for High-Demand Homes.
Designed for high-demand homes with greater energy needs, this three-phase hybrid inverter helps manage larger residential energy consumption through flexible solar integration, battery storage, and intelligent power control.

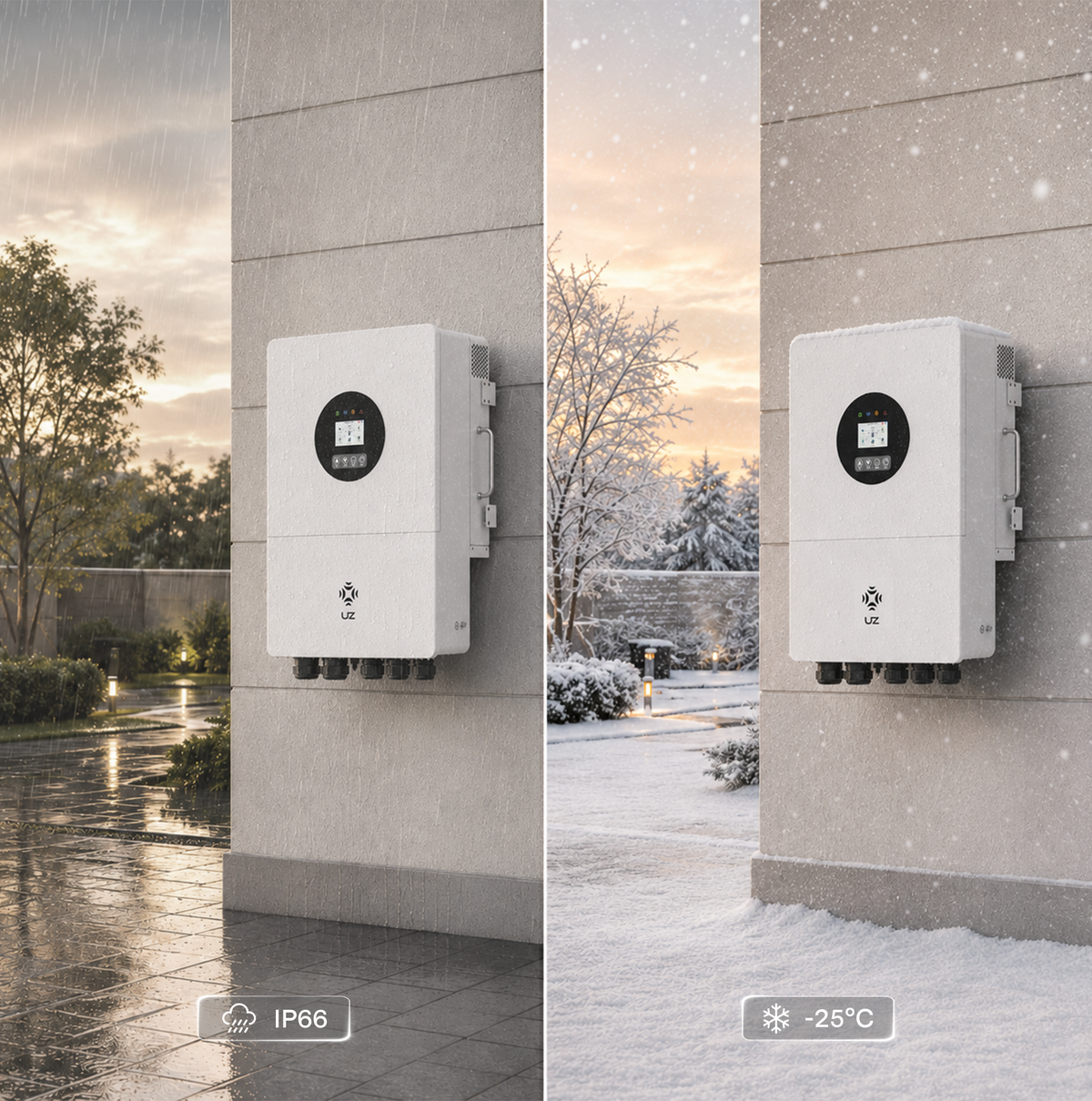

Built for Changing Weather.
IP66
Protected against dust and powerful water jets
−25°C
Minimum operating temperature

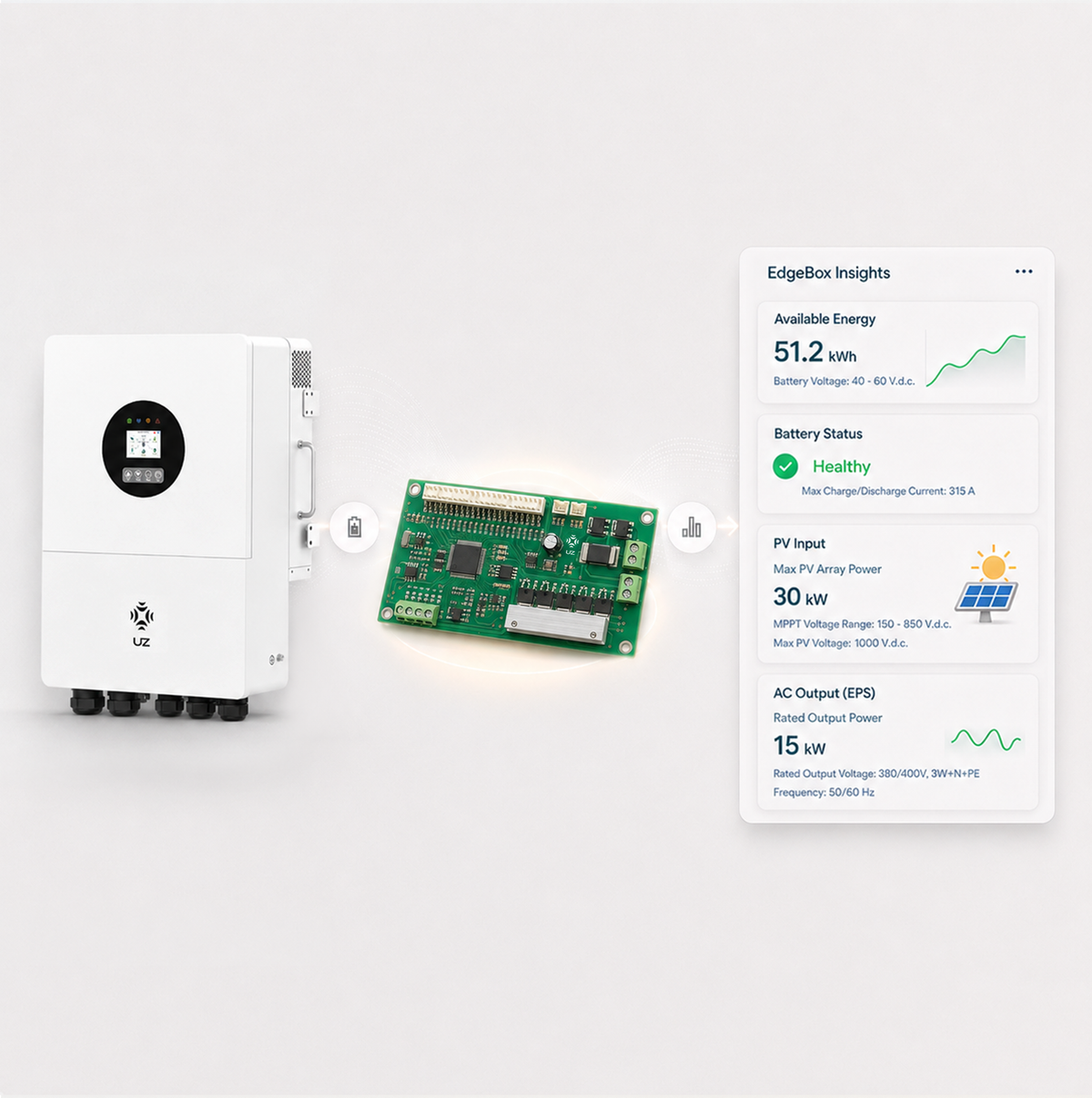

More Accurate Energy.
Smarter Decisions.
Smarter Decisions.
EdgeBox improves energy estimates, identifies potential risks earlier and supports smarter charging and discharging.
SPEC
Rated AC Output Power
8–24 kW
Grid Connection
380/400 V AC · 3W + N + PE · 50/60 Hz
Max. PV Array Power
16–48 kW
PV Voltage
1,000 V DC maximum / 180 V start-up
MPPT Voltage Range
150–850 V DC
MPPT Configuration
2 trackers / 2 + 2 strings
Battery Compatibility
Lithium / Lead-acid · 51.2 V rated
Battery Voltage Range
40–60 V DC
Max. Charge / Discharge Current
Up to 415 A
EPS Rated Output Power
8–24 kW
Backup Switch Time
<20 ms
EPS Overload / Unbalanced Output
Up to 200% for 10 seconds / Up to 150% three-phase unbalanced output
Max. Efficiency
Up to 98.0%
Parallel Capability
Up to 8 units
Protection Degree
IP66
Operating Temperature
-25°C to 60°C · Derating above 45°C
Dimensions
448 × 660 × 265 mm
Weight
40–45 kg, model-dependent
Communication
RS485 / Wi-Fi / CAN / DRM · Optional Bluetooth / LAN / Meter
Certifications / Grid Standards
EN IEC 62109-1/-2 / EN IEC 62477-1 / EN IEC 61000-6-1/-3 / EN 50549-1/-10 / NRS 097-2-1
Product Downloads
Technical documents for this product.
