Power Mega Series

PMU-A125K-261L-U

261 kWh C&I Energy Storage Cabinet

Certification

UL 9540 | UL 1973

Designed For

North America

261.25 kWh

Energy Capacity

125 kW

Rated Power

Liquid Cooling

Thermal Management

IP55

Protection Rating

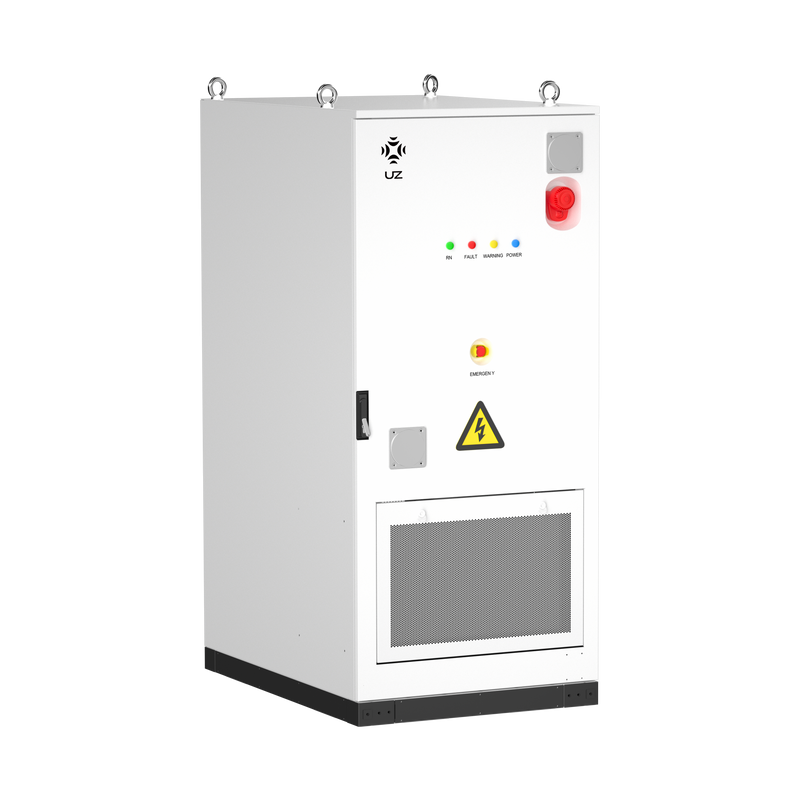

PMU-A125K-261L-U integrated battery, PCS, BMS and optional EMS overview

All-in-One
Energy Storage System.

The PMU-A125K-261L-U combines the battery system, PCS and BMS in a single outdoor cabinet, simplifying installation and operation for commercial and industrial applications. An optional EMS is installed in the main cabinet for system-level control.

Liquid cooling and heating system for PMU-A125K-261L-U battery thermal management

Liquid-Cooled
Thermal Management.

Liquid cooling and heating support stable battery temperature management across changing operating conditions.

PMU-A125K-261L-U aerosol suppression, gas detection, exhaust and external water firefighting interface

Layered Safety
Protection.

Combustible-gas detection, aerosol fire suppression and pressure relief work together, with a DN65 external water firefighting interface supporting site fire-protection arrangements.

Built for Outdoor Deployment.

The IP55 cabinet supports outdoor commercial and industrial energy storage projects, with defined dimensions and connection interfaces for installation planning.

PMU-A125K-261L-U outdoor cabinet dimensions and connection interfaces

Optional PMU-A125K-261L-U local EMS monitoring and multi-cabinet control

Intelligent Energy
Management.

An optional EMS in the main cabinet supports system monitoring, charge and discharge control, peak shaving and demand management. One EMS can coordinate a configured group of one to five cabinets.

Flexible Energy Applications.
