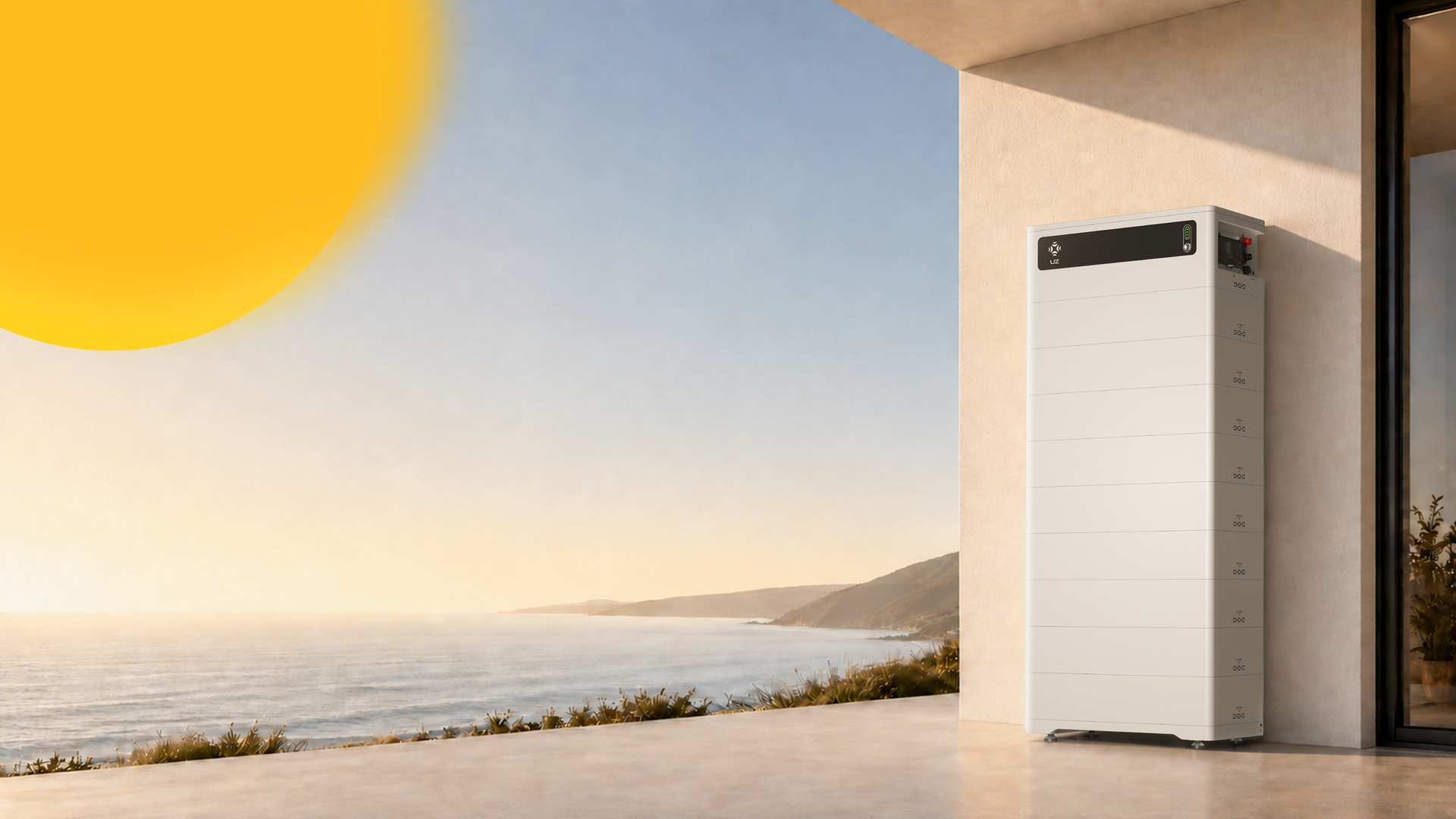

WJ Series low-voltage stacked energy storage system
WJ SERIES
Low-Voltage Stacked Energy Storage System
10.24–307.2 kWh
System Capacity
51.2 V
Rated Voltage

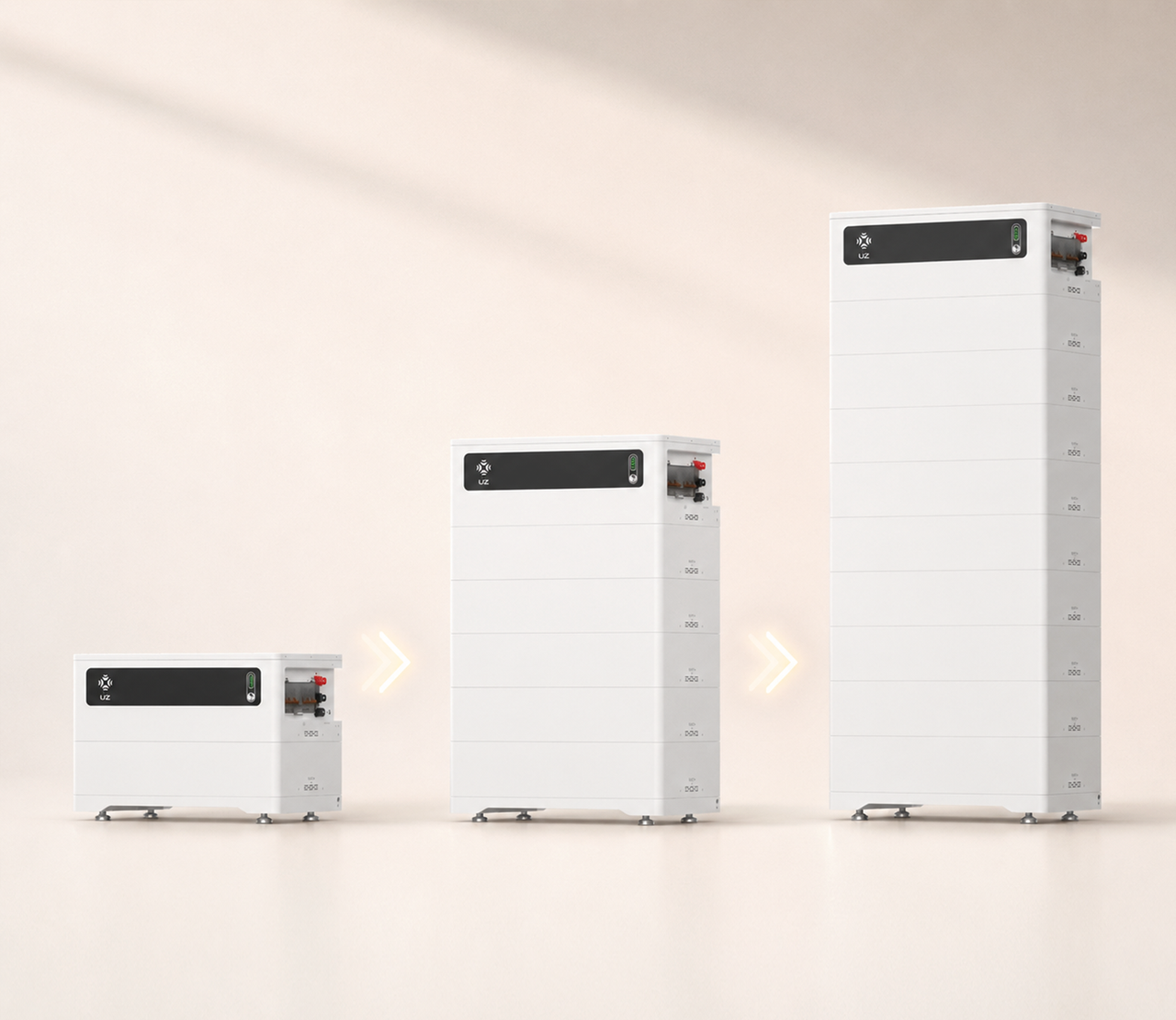

WJ Series modular parallel expansion
From 2 Modules
to 6 Clusters

Start at 10.24 kWh. Stack up to 10 modules for 51.2 kWh per cluster, then connect up to 6 clusters in parallel for 307.2 kWh.

2 → 10 Modules
10.24 kWh → 51.2 kWh / cluster → 307.2 kWh total

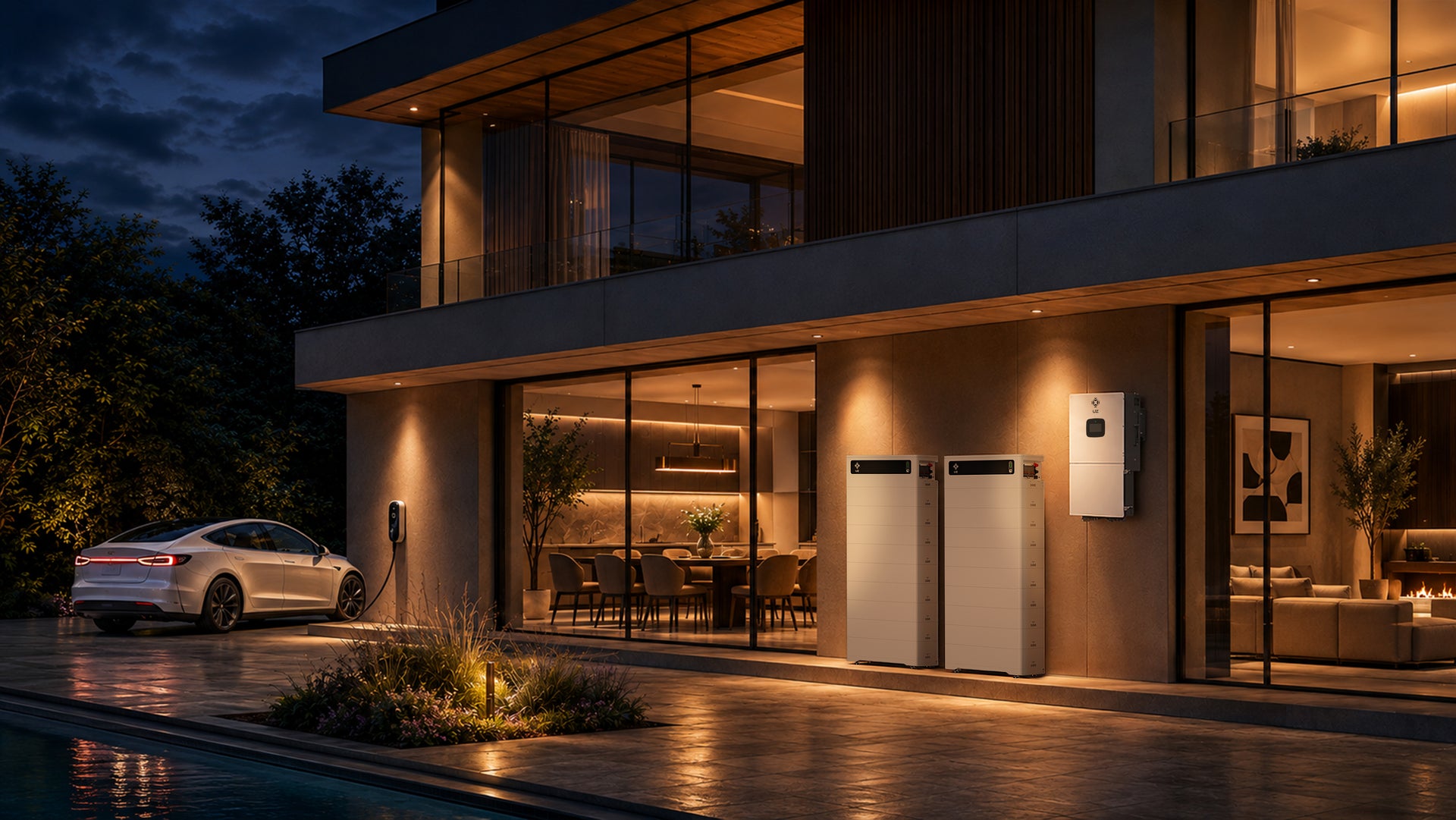

WJ Series residential backup power scene
24/7 Backup Power
Stay powered through grid outages.
Earn from Energy
Unlock more value from changing electricity prices.
Lower Electricity Bills
Use less grid power and save more.
WJ Series six-layer protection structure
Safety, Built in at Every Layer

Protection is built across six layers: cloud smart management, DC circuit breaker, fuse protection, IP65 protection, fire extinguisher, and self-developed BMS control work together to provide comprehensive electrical, environmental, fire, and system-level protection.

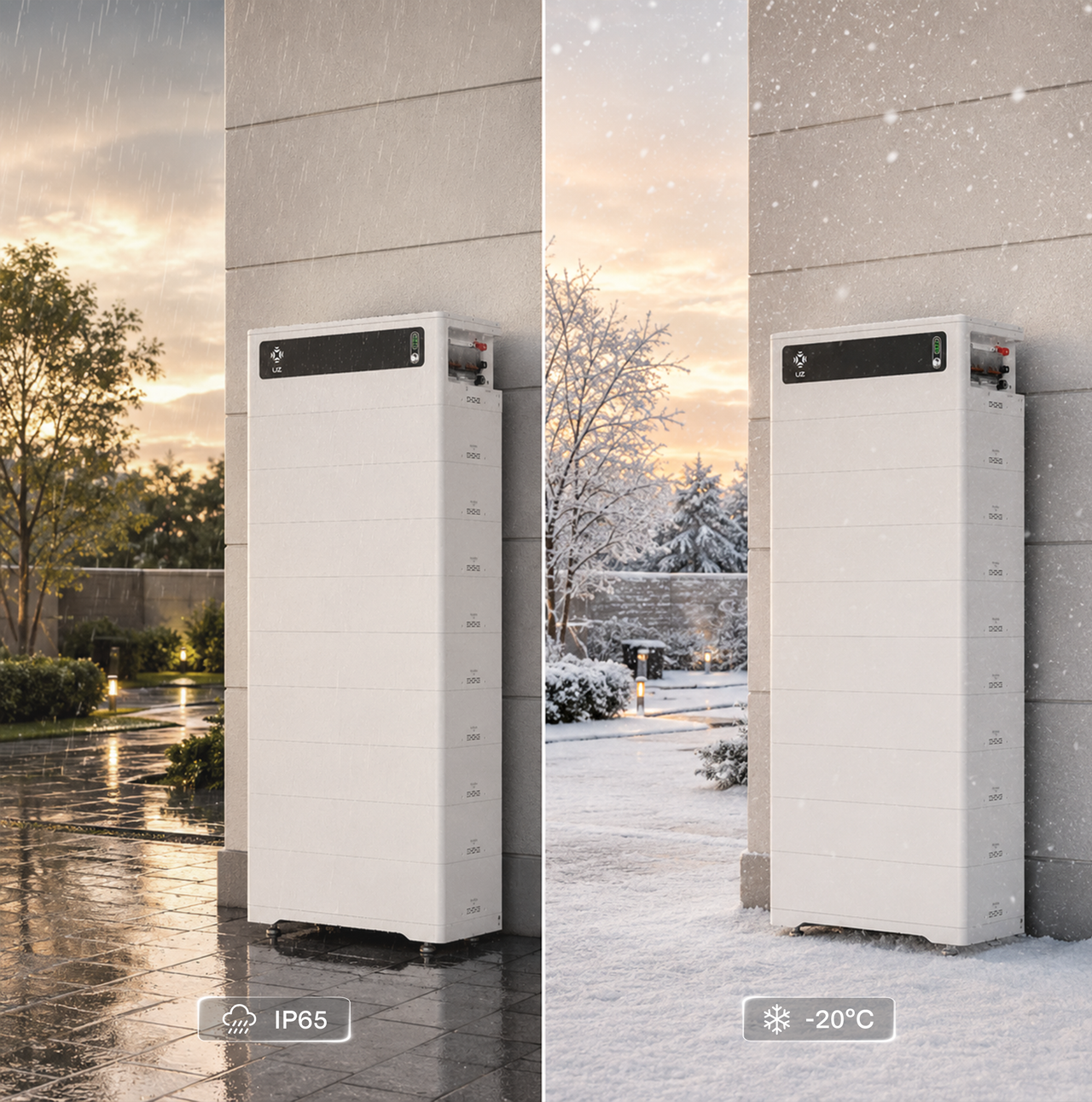

WJ Series outdoor adaptability in cold, rain and snow
Ready for Every Season.
IP65
-20°C

Designed to keep working in cold, rainy and snowy conditions within its specified operating range.

-20°C to 55°C operating range · Optional heating films for low-temperature configurations

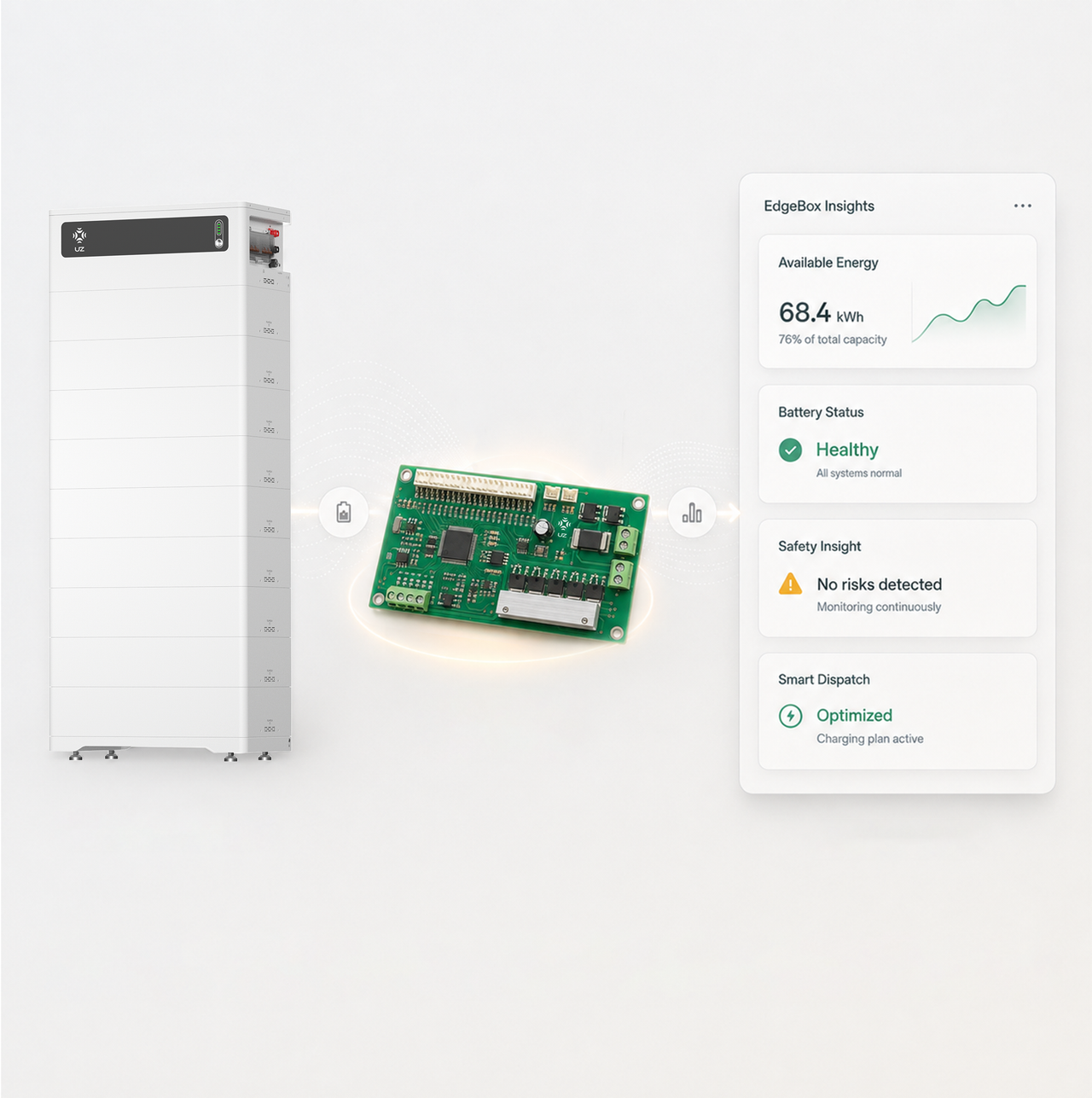

WJ Series EdgeBox dashboard
More Accurate Energy.
Smarter Decisions.

EdgeBox analyzes real-time battery data to improve SoC and available-energy estimates, identify safety risks earlier, and guide smarter charging and discharging—supporting safer operation, better energy use and energy trading where available.

Power That Grows with Your Home.

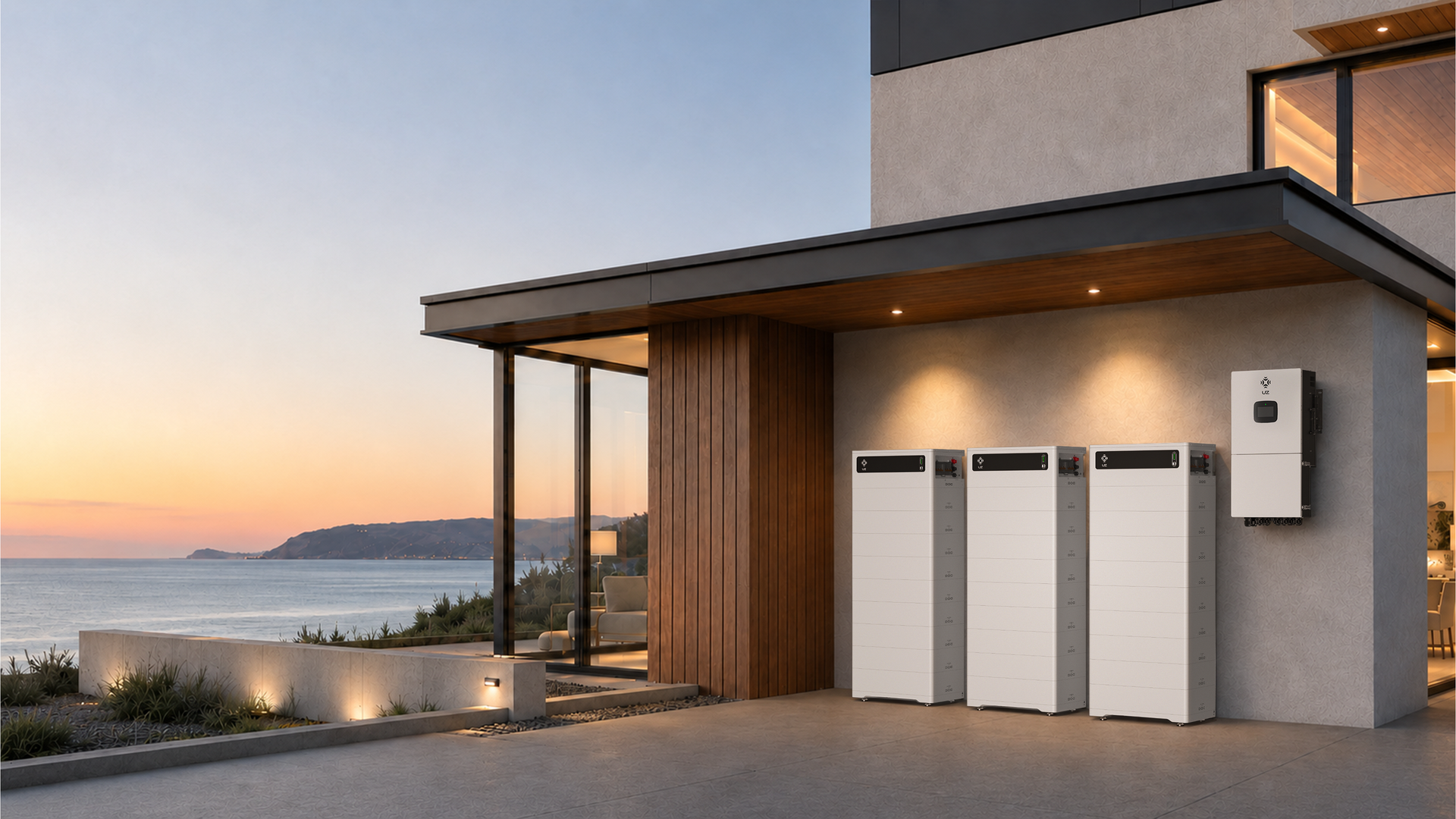

WJ Series scalable home energy storage

From everyday solar storage to greater household energy needs, WJ Series expands with your system while maintaining a clean, integrated presence around the home.

SPEC
Rated Energy
10.24–51.2 kWh
Rated Charge/Discharge Power
6.1–10 kW
Rated Voltage
51.2 V
IP Rating
IP65
Cycle Life
6,000 cycles
Certifications
UN 38.3 / IEC 62619 / IEC 61000 / IEC 62040
