PLPA-L1-10K2-U 10.24 kWh home battery for US residential energy storage
Power Lite Plus Series

PLPA-L1-10K2-U

Low-Voltage Home Battery
Certification
UL 1973 | UL 9540A | UN 38.3
Designed For
United States
10.24 kWh
Rated Energy
6.14 / 6.14 kW
Charge / Discharge Power
IP65
Protection Rating
6,000 Cycles
Designed Cycle Life
Store Solar.
Power Your Home.

PLPA-L1-10K2-U is a slim 10.24 kWh wall-mounted LFP battery system designed for residential solar storage and backup applications, with scalable parallel expansion as energy needs grow.

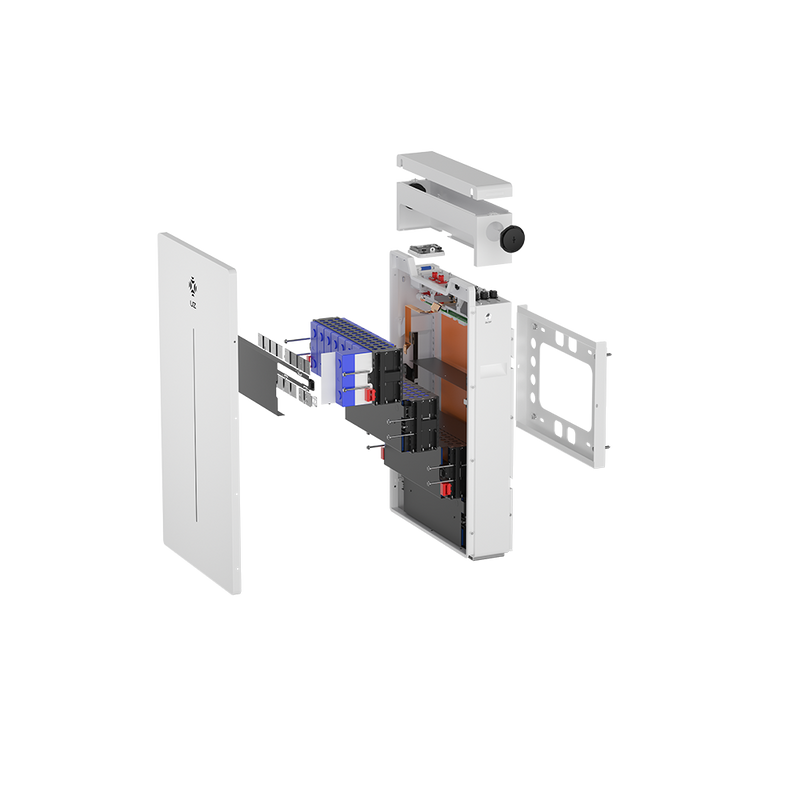

Exploded view of the PLPA-L1-10K2-U battery system
Protection,
Built In.

The enclosure, battery modules, electrical components and control hardware work together to support stable, reliable operation.

PLPA-L1-10K2-U home backup during a grid outage
Recharge with Solar
Power Through Outages
Keep Your Home Running

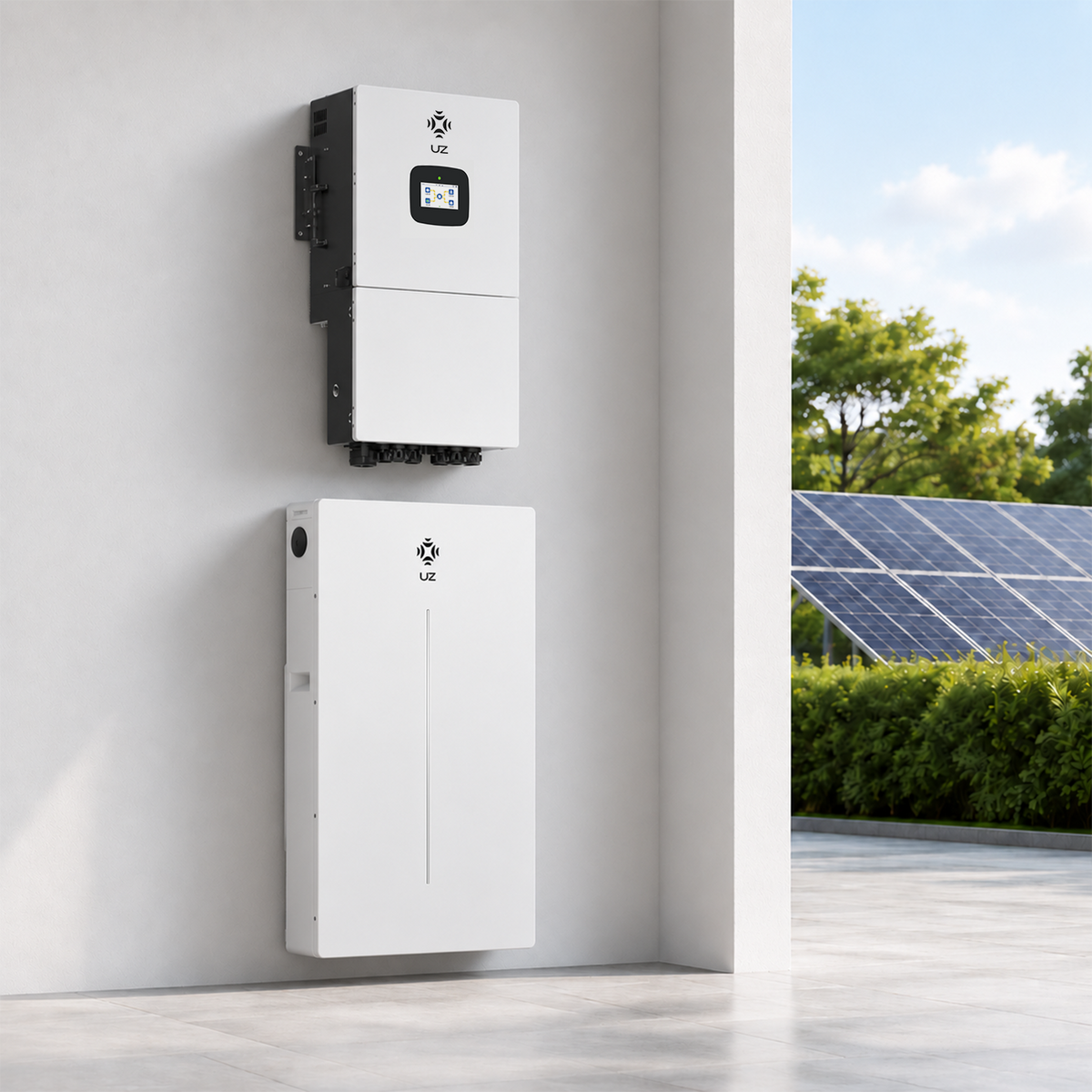

PLPA-L1-10K2-U installed in a residential garage energy system
24/7 Energy.
More Value from Every kWh.

Store solar for home backup and EV charging, and export surplus energy where local programs allow.

10.24 kWh
Rated energy per unit

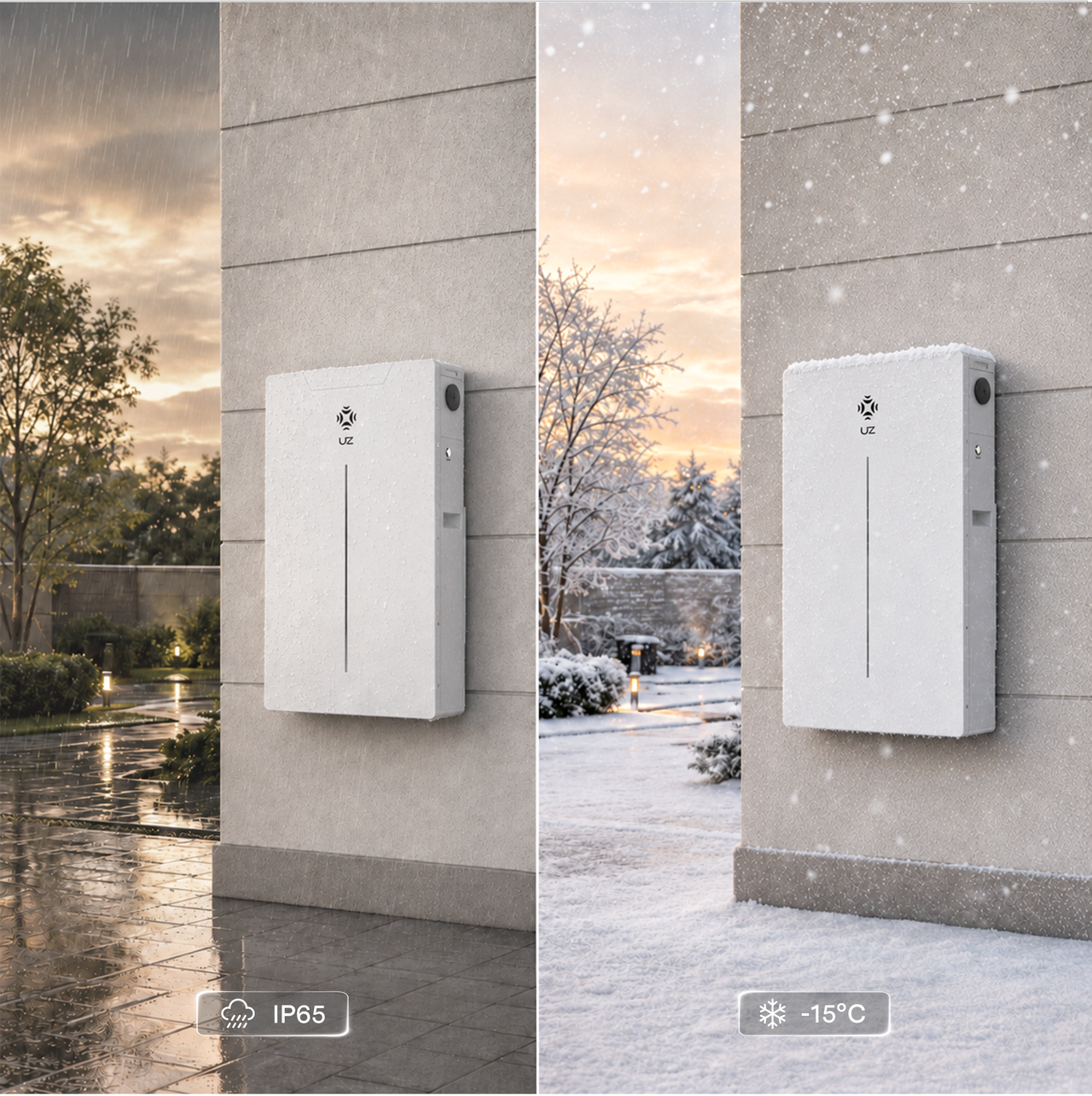

PLPA-L1-10K2-U operating in rain, snow and cold weather
IP65
Dust & Rain Protection
−15°C
Charging Support

Designed to keep working in cold, rainy and snowy conditions within its specified operating range.

-15°C to 55°C operating range
Optional heating films for low-temperature configurations

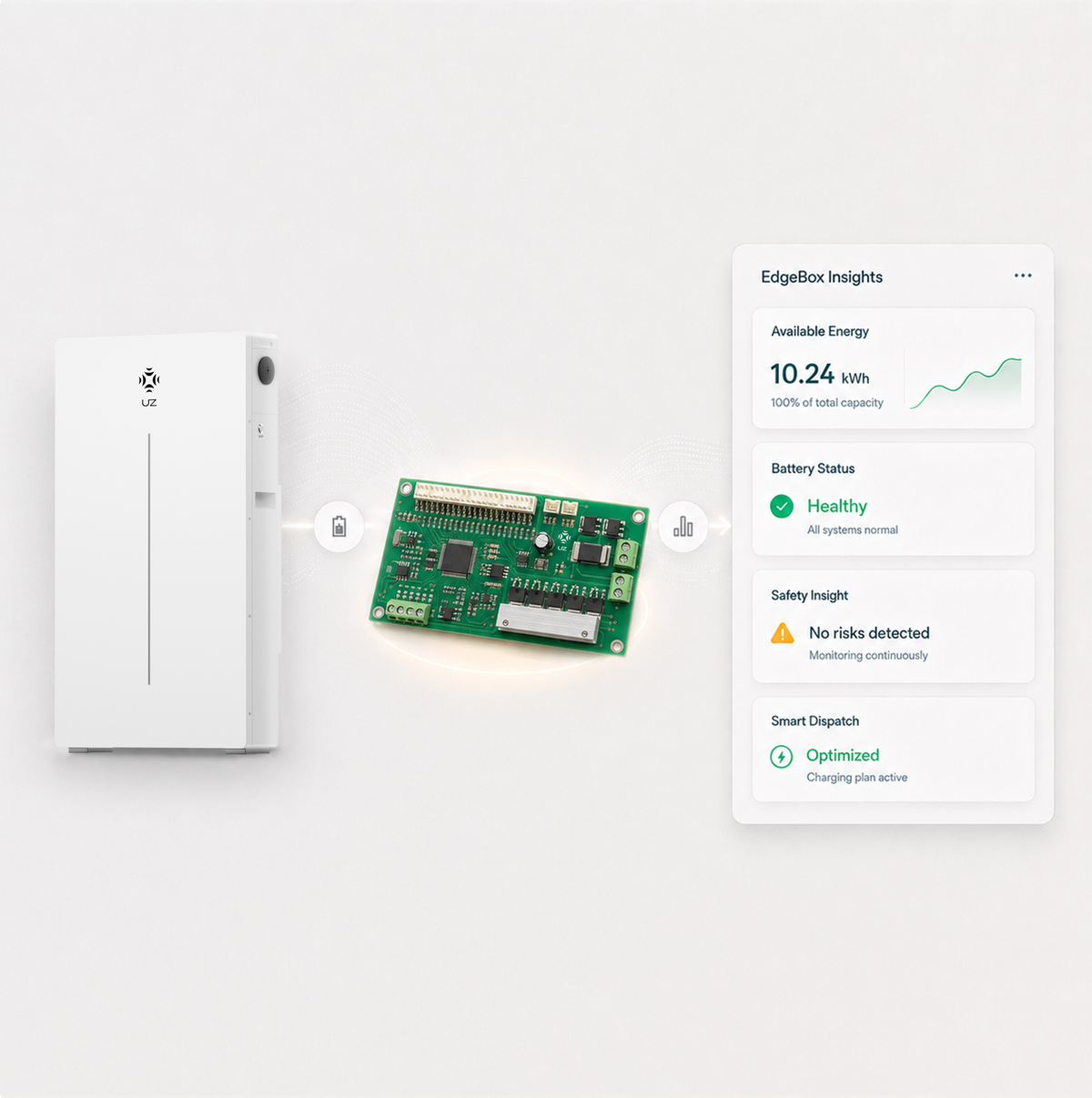

EdgeBox energy analysis system for PLPA-L1-10K2-U
More Accurate Energy.
Smarter Decisions.

EdgeBox turns battery data into clearer energy, safety and dispatch insight.

More Energy for Life at Home.

Solar energy, ready when your family needs it.

Family lifestyle scene powered by residential solar and storage
SPEC
Rated Capacity
200 Ah
Rated Energy
10.24 kWh
Rated Voltage
51.2 V
Working Voltage Range
43.2–58.4 V
Rated Charge / Discharge Power
6.14 kW / 6.14 kW
Peak Discharge
160 A / 8.19 kW for 1 minute
Expansion
Up to 32 units / 327.68 kWh
Dimensions
550 × 165 × 1,000 mm (±5)
Weight
Approx. 213.8 lb
Operating Temperature
Charge: 23°F to 131°F / Discharge: 5°F to 131°F
IP Rating
IP65
Communication
CAN / RS485 / Dry Contact / Optional Wi-Fi
Designed Cycle Life
6,000 cycles · 0.5C, 80% DoD, 80% SOH at 25°C
Warranty
10 years
Certifications
UL 9540A / UL 1973 / UN 38.3

Product Downloads

Technical documents for this product.

Datasheet English
