PLHB

Name: PLHB
Brand: UZ Energy
Availability: InStock

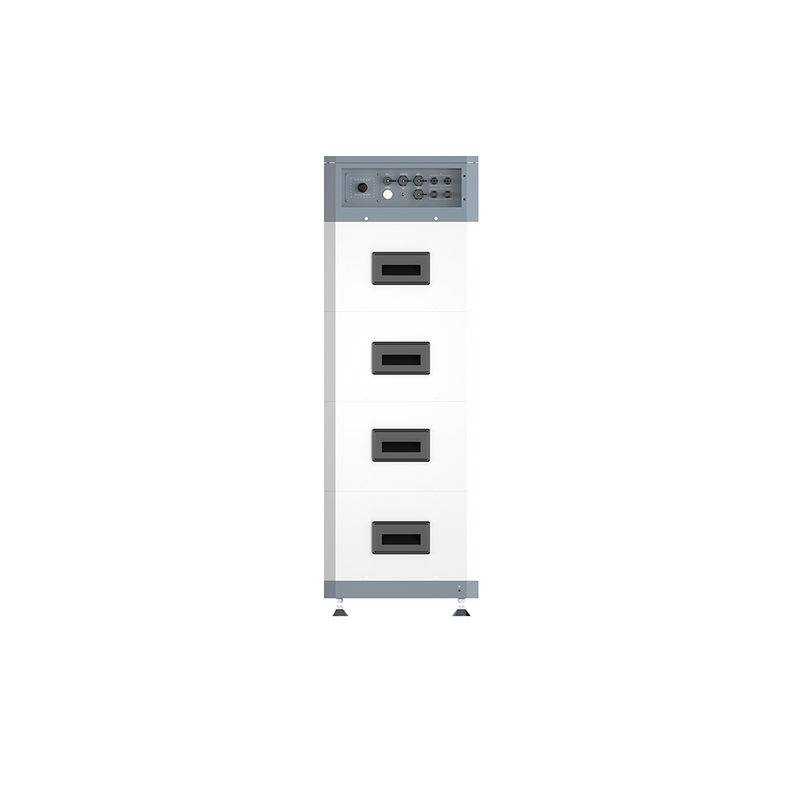

PLHB is a high-voltage stackable LFP battery system designed for residential and light commercial energy storage, delivering flexible configuration and stable performance.

With 1 to 6 battery modules per stack and a voltage range from 102.4 V to 614.4 V, it adapts to a wide range of inverter requirements.

Built with tier-one LFP cells, an advanced BMS, and an embedded high-accuracy SoC/SoH algorithm, PLHB ensures reliable long-term operation with 6000 cycles and a 10-year warranty.

It also integrates a fire extinguishing system and supports black start, making it a strong choice for backup and emergency power.

Specifications

Battery Module: 1 ~ 6
Rated Voltage: 102.4V ~ 614.4V
Rated Capacity: 50Ah
Weight: 849.2 lbs / 385.2 kg
Dimensions: 560*400*1,663 mm (±5) / 22.05*15.75*65.47 in (±5)
Cycle Life: 6000 cycles
Warranty: 10-Year
IP Rating: IP55
Certification: IEC 62619 / EN 61000 / IEC62040 / IEC62477 / VDE-2510-50 / UN 38.3 / ROHS, REACH

Certifications

Key Features

Core Capabilities
Tier-one LFP Battery Cells
Advanced BMS Control
Embedded Highly Accurate SoC / SoH Algorithm
Equipped with Fire Extinguishing System

System Capability
Easy Installation
Quick Stackable Plug-in Design
Automatic Parallel Configuration
Multi-parallel Configuration among Battery Clusters
Wide Range of Inverter Voltages: 80 – 750 V
Wide Range of Compatible Popular Inverters
Various Protocols Embedded
Black Start Capable

Environmental & Smart Control
Self-heating for Low Ambient Temperatures
Outdoor & Indoor Application (IP55)
Remote Monitoring with Over-the-air Updates
