BD series

Name: BD series
Brand: UZ Energy
Availability: InStock

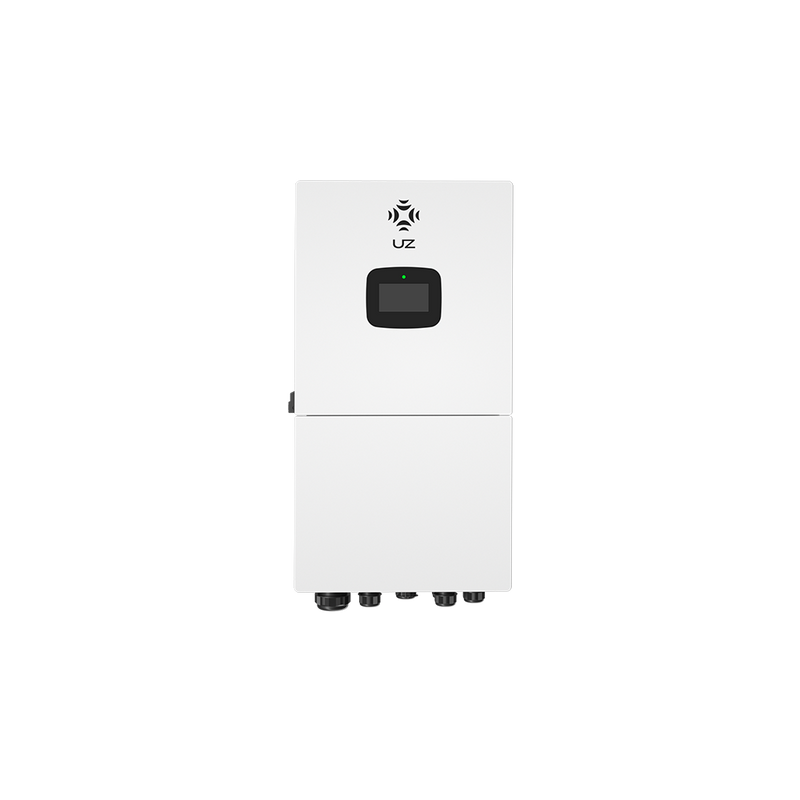

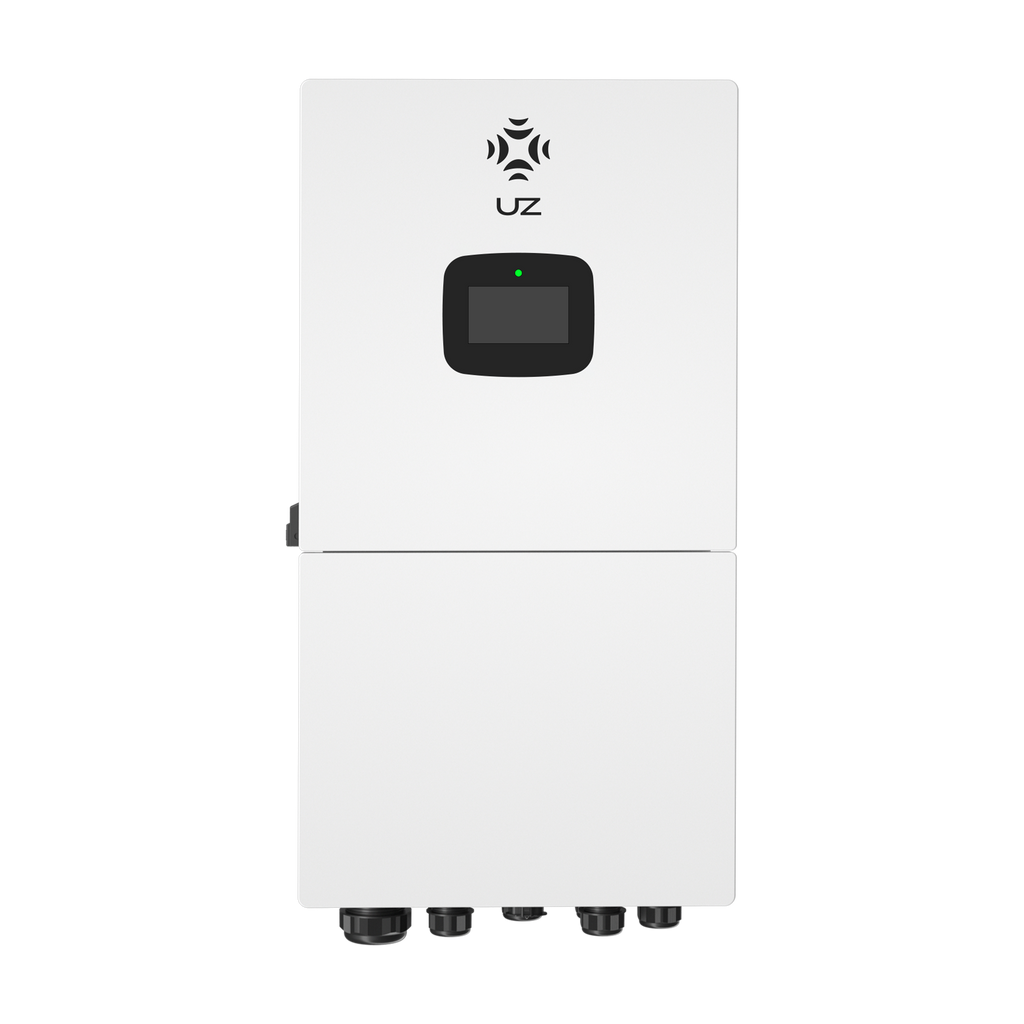

SEL-(5–11.4)KAH-(130–210)D(T)U is a split-phase hybrid inverter for the U.S. market, designed for whole-home backup and flexible solar + storage systems.

With 2–3 MPPTs for multiple PV orientations, up to 210 A battery charge/discharge current, and 200 A bypass current, it supports strong power delivery during outages.

It works with 40–64 V lithium or lead-acid batteries, supports up to 9 units in parallel for both on-grid and off-grid operation, and offers smart energy management with local/remote monitoring and battery scheduling.

Specifications

Split Phase Hybrid
Battery Type: Lithium-ion/Lead-acid
Battery Voltage Range: 40 V - 64 V
Nos. of MPPT: 2 - 3
Nominal Output Power: 5kW - 11.4kW
Operating Temperature Range: -25 °C~60 °C (>45 °C derating)
Dimensions (WHD): 420*800*240 mm
Weight: 44Kg
Warranty: 5 Years/10 Years (Optional)

Key Features

Core Capabilities
3 MPPTs integrated for multiple PV array orientations
Max. battery charge / discharge current up to 210 A
200 A bypass current for whole-home backup

System Capability
Supports 40–64 V Lithium or Lead-acid batteries
Max. 9 units in parallel for on-grid & off-grid operation
Supports smart load, generator & AC coupling

Safety & Reliability
IP65 rated for indoor or outdoor installation
Built-in battery and load breakers
Integrated AFCI 2.0 and rapid shutdown for enhanced protection
