Power Swift Series

PMS-A125K-261K-E

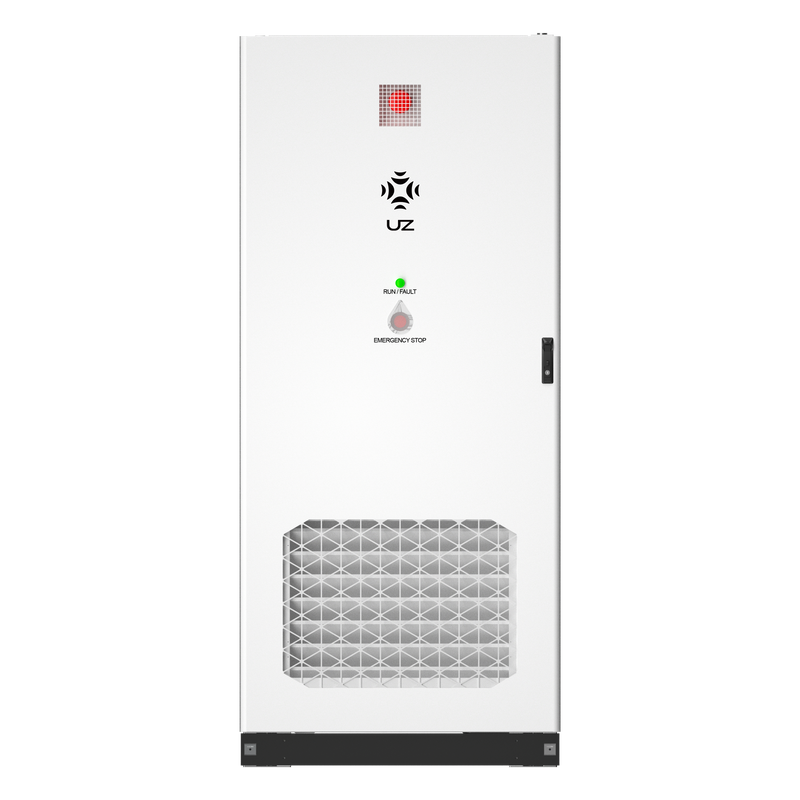

The PMS-A125K-261L-E is a high-performance liquid-cooled commercial and industrial energy storage system featuring 261 kWh battery capacity and 125 kW rated power output. Built with Tier-one LFP battery technology, the system delivers high efficiency, stable operation, and reliable long-term energy performance for various C&I ESS applications.

Designed for safety and flexibility, the system supports 50 Hz / 60 Hz grid applications, intelligent remote monitoring, and advanced fire protection architecture with liquid cooling and IP55-rated protection. It is ideal for peak shaving, backup power, renewable energy integration, and other industrial and commercial energy storage scenarios.

Contact Us File download

Specifications

  • Rated Capacity: 261 kWh
  • Rated Power: 125 kW
  • Battery Type: LFP 3.2 V / 314 Ah
  • Voltage Range: 650–950 V
  • Output Voltage: 400V AC, 3-phase, 50Hz
  • PCS Efficiency: 98.5%
  • Cooling Method: Liquid Cooling
  • IP Rating: IP55
  • Weight: 2,650 kg
  • Dimensions: 1000 × 1400 × 2280 mm
  • Certification: CE, IEC62619, IEC61000, IEC62477, UN38.3, EN 50549-1

Key Features

  • Flexible and easily expanded as per requirements
  • Integrate all things and easy for installation
  • Supports both on-grid and off-grid operations
  • Equipped with cloud-based monitoring capabilities
