Three Phase

Name: Three Phase
Brand: UZ Energy
Availability: InStock

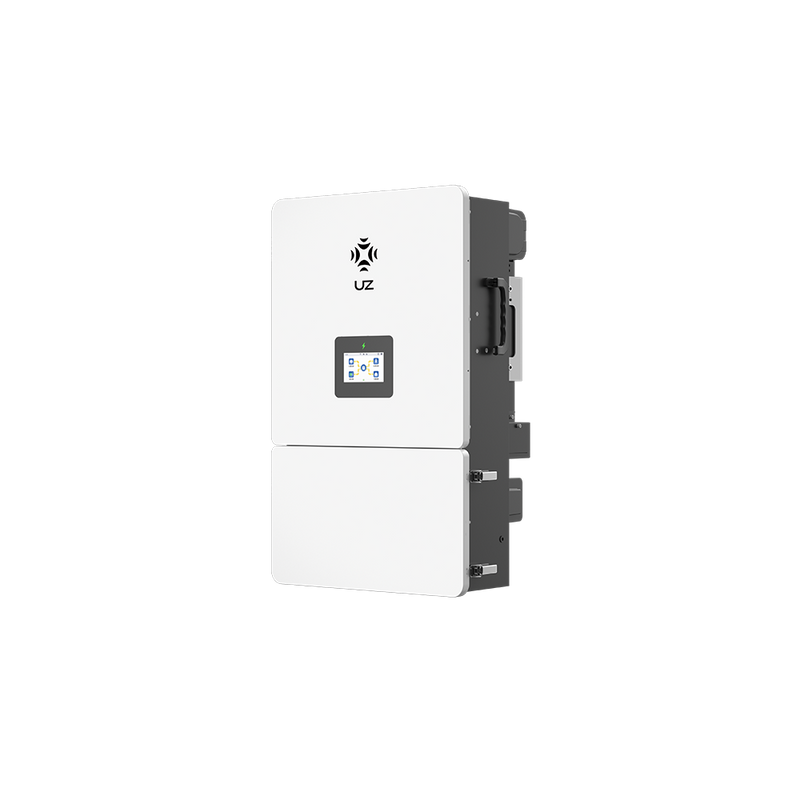

SEL-(6–20)KTH-(150–380)D(T)E is a three-phase low-voltage hybrid inverter built for residential and light commercial solar + storage systems that need higher power and flexible control.

With 2–3 MPPTs and up to 30 kW PV input, it supports high-power PV modules (20 A input) and delivers strong storage performance with up to 380 A charge/discharge current.

It also supports 3-phase unbalanced output to improve solar self-consumption, and can run up to 9 units in parallel for both on-grid and off-grid operation.

With IP65 protection, optional advanced safety features, and smart monitoring, it’s designed for reliable performance and easy maintenance.

Specifications

Three Phase Low Voltage
Battery Type: Lithium-ion/Lead-acid
Battery Voltage Range: 40 V - 60 V
Nos. of MPPT: 2 - 3
Nominal Output Power: 6kW - 20kW
Operating Temperature Range: -25 °C~60 °C (>45 °C derating)
Dimensions (WHD): 460x742x266 mm
Weight: 50 Kg
Warranty: 5 Years/10 Years (Optional)

Key Features

Core Capabilities
3 MPPTs with maximum PV input power up to 30 kW
Supports high-power PV modules with 20 A input current
Maximum charging & discharging current up to 380 A
Maximum grid passthrough current: 45 A

System Capability
Supports 40–64 V Lithium or Lead-acid batteries
3-phase unbalanced output to increase solar self-consumption
Supports smart load, generator & AC coupling
Max. 9 units in parallel for on-grid & off-grid operation

Safety & Reliability
IP65 rated for indoor or outdoor installation
MC4 PV connectors for fast and convenient installation
Multiple built-in protections with optional AFCI 2.0 / RSD / Battery breaker
Seamless transition to backup mode for outage protection

Intelligent Maintenance
4.3-inch LCD color touchscreen, easy operation
6 configurable time periods for battery charging / discharging
Intelligent management with local & remote monitoring
