Power Lite Series

L051100-A1

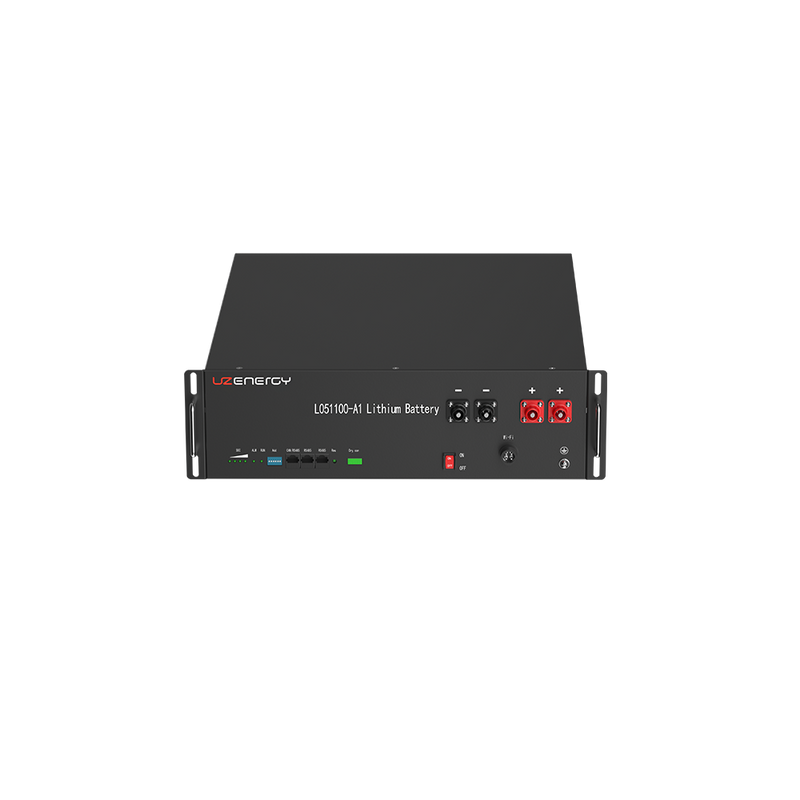

L051100-A1 is a stackable LFP battery designed for residential and light commercial energy storage.

With a multi-parallel setup of up to 32 units (stacking accessories required), it offers flexible capacity expansion while keeping a compact footprint.

Built with tier-one LFP cells and advanced BMS control, it delivers high cycle life (6000 cycles) and a 10-year warranty for long-term, worry-free backup and off-grid power use.

Contact Us File download

Specifications

  • Rated Voltage: 51.2V
  • Rated Capacity: 100Ah
  • Weight: ~99.2 lbs / ~45 kg
  • Dimensions: 440×530×132 mm (±5) / 17.32×20.87×5.20 in (±5)
  • Cycle Life: 6000 cycles
  • Warranty: 10-Year
  • IP Rating: IP20
  • Certification: TUV / IEC 62619 / IEC 62040 / IEC 61000 / UN 38.3

Certifications

Key Features

  • Core Capabilities
    Tier-one LFP Battery Cells
    Safe & Reliable LFP Battery
    Advanced BMS Control

  • System Capability
    Single Unit High Power Yield Support
    Multi-parallel Configuration, Up to 32 Units
    Compact Design (3U Height)

  • Application Scenarios
    Micro-grid Applications
    Off-grid Energy Storage
    UPS Power Supply
    Blackout & Emergency Backup
